Sometimes you just need a quick audio mixer; a voltage offset; a CV mixer; an attenuator; an attenuverter; or just a voltage. Mix and match the four controls to your needs.

The shorter and wider brother to the popular Triplatt module!

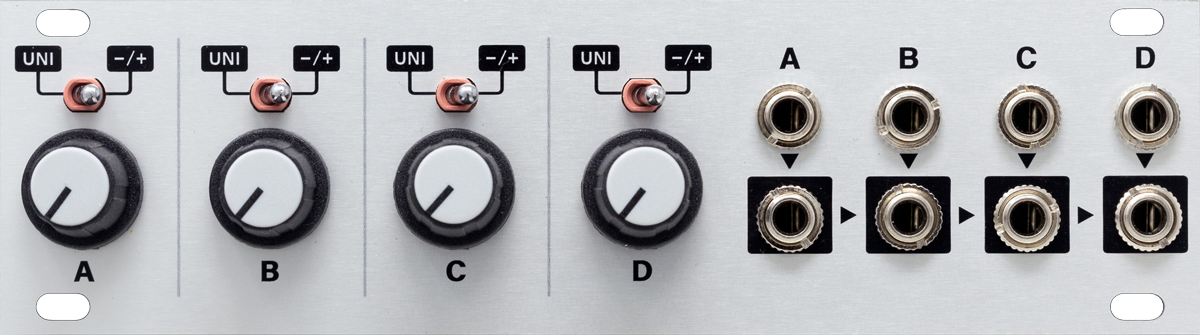

The four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each channel.

Each input is normalled to a precision +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0V to +5V or -5V to +5V depending on the position of the mode switch. This is great for setting up “performance macros” in your patch to control multiple parameters with a single knob.

The channels cascade from left to right, allowing you to blend up to four channels, set up a stereo mix, or apply an offset to a signal. This means that envelopes can be made bipolar, or LFOs can be made unipolar.
