Description

A Bernoulli gate takes a logic signal (trigger or gate) as an input, and routes it to either of its two outputs according to a random coin toss.

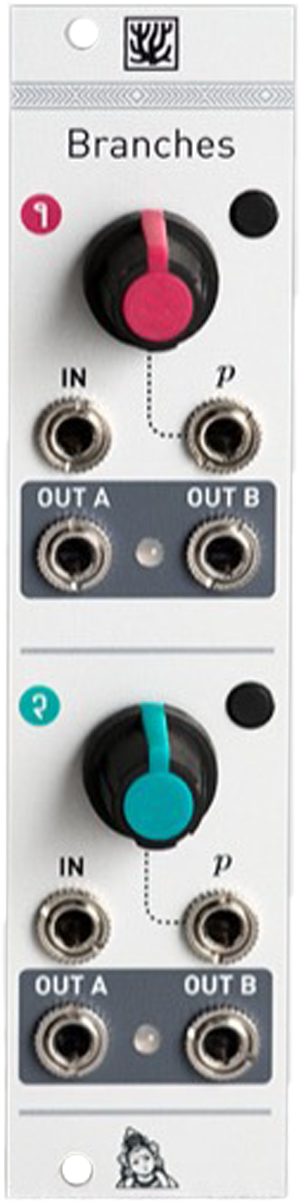

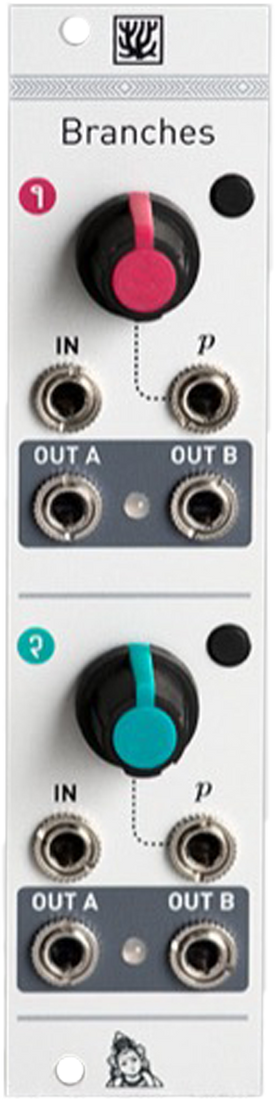

Branches packs two such gates in a small 6-HP panel. The knob and CV input on each channel controls the probability of routing the gate to either outputs, from 100% output A, 0% output B; to 0% output A, 100% output B.

Features

  • Randomly skip steps in a sequence, triggers in a rhythmic pattern.
  • Dispatch rhythmic events to two instruments or sub-patches.
  • A building block for large generative patches.
  • An abrasive digital noise source at audio rates!
  • Gate inputs: 100k impedance, 0.6V threshold.
  • CV inputs: 100k impedance, +/- 5V.
  • Outputs: +5V for the HIGH level.
  • Response time: 15µs.

Specifications

  • Width: 6hp
  • Depth: 25mm
  • Power: +12V:10mA -12V:1mA

$209.00
